• Hot pot vegetable washing machine

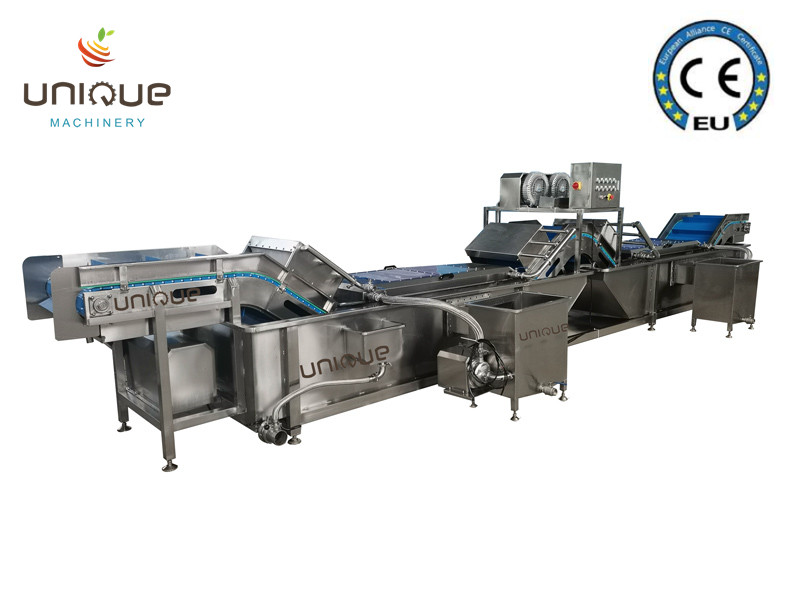

Hot pot vegetable washing machine

Model:HGCQX8400
Application:
Description:Hot pot vegetable washing machine is suitable for washing whole leafy vegetables without cutting. Put vegetables neatly. Easy to pack in bundles.

Tel : 0086-18265879944

E-mail:info@zibounique.com
Send us your request and we will get in touch with you.

Introduction

1. Power: 6.75KW380v50hz
2. The bracket is a 50*50*1.5 mm stainless steel square tube with a universal adjustment bolt at the bottom. The box is made of SUS304 stainless steel plate with a thickness of 2.0mm
3. The conveying adopts nylon modular belt, the net width is 650mm, and the upper scraper is equipped with a scraper height of 80 and a scraper spacing of 305mm.
4. The bottom of the equipment box is a trapezoidal bottom, which is convenient for drainage. Equipped with water inlet, overflow outlet, and drain valve (the depth of the water tank is 320mm from the tank body). The water level is 2 or more water levels.
5. The equipment is cleaned independently in two stages, each equipped with a 1.5KW bubbling machine, a 1.5KW circulating water pump (one side of the box is equipped with a filter tank), a 0.75KW manual reducer and a stainless steel protection cover, the conveying speed can be adjusted appropriately according to the processing progress.
6. The upper part of each sink is equipped with a circulating water spray pipe, and the spray intensity can be adjusted (can switch between natural water and circulating water).
7. The whole machine is made of stainless steel SUS304 except the motor and related parts.
8. The water injection volume of the whole machine is 3.5-4 cubic meters at a time. The water source is filtered and recycled.
9. The whole machine is equipped with an electric control box and the circuit control is five circuits, which are bubble device * 2 spray device * 2 conveying device.

Parameter

Dimension: 8400*1450*1300 mm

Power: 6.75 kw
